An enamel modular water tank for batching plants — capacity set by the mix schedule, not by a catalogue size.
Indicative — the quotation confirms the final figure US$3,600 Lead time within 15 working days · ex Dezhou, Shandong
SKU LVJ-EN-MOD
What buyers said once the tank was on site — every review left on our Alibaba store, in their own words.
The enamel modular water tank from LVJIA is built on the Enameled panel system at our own plant in Dezhou, Shandong. A batching plant draws water in short, heavy bursts, so storage is sized around the batch rather than the day.
An enamel modular water tank is a bolted tank whose steel panels are fired with a glass glaze at high temperature, so the surface meeting the water is chemically glass rather than metal. It does not rust, it takes no coating and it adds no taste, and the glaze is fused into the steel rather than painted onto it. Panels come in 3 × 1 m; 2 × 1 m; 1.5 × 1 m; 1 × 1 m; 1 × 0.5 m; 0.5 × 0.5 m, and the tank is rated for water between 4 and 100 °C.

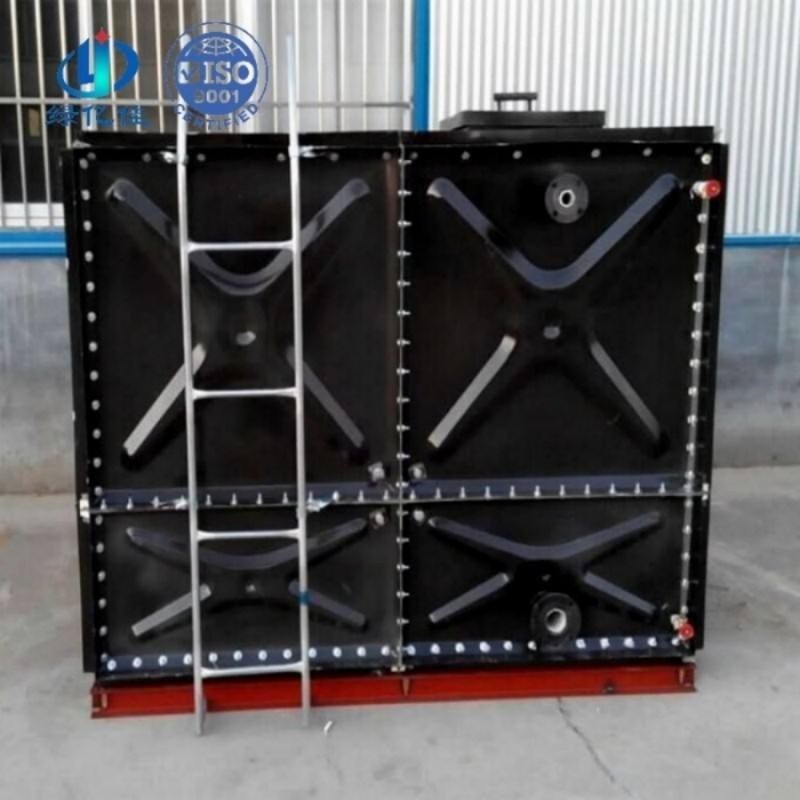

Concrete production is cyclical: each batch calls for its water in under a minute, then nothing until the next one. Storage has to cover the peak batch with enough left over that the level never drops to the pump, while the incoming supply refills between cycles. Because the tank is modular, the working volume is set by module count and changed later if the plant output rises. Cement dust makes a sealed cover worth having as well, since it will otherwise settle into any open tank on site.
The panel is pressed from 2 to 4.5 mm steel depending on where it sits in the wall, then enamelled on both faces so the outside is protected as well as the inside. Assembled, the wall section measures 12 mm. Panels bolt together on a sealed joint, and because the glaze is inert the same tank handles potable water, fire reserve and mildly aggressive process water without a change of specification. LVJIA runs the enamel line at Dezhou under ISO 9001.
| Model number | Enamel Water Tank |
|---|---|
| Material | Enamelled (glass-fused-to-steel) plate |
| Type | Enamel steel water tank |
| Installation | Bolts connect |
| Wall thickness | 12 mm |
| Panel thickness | 2 – 4.5 mm by height |
| Panel sizes | 3 × 1 m 3 × 1 m 1.5 × 1 m 1 × 1 m 1 × 0.5 m 0.5 × 0.5 m |
| Storage water temperature | 4 – 100 °C |
| Applicable | Civil air defence engineering, fire protection |
| Transport package | Export standard |
| Certification | ISO 9001 |
| Origin | Dezhou City, Shandong Province, China |
Panels are 2 to 4.5 mm by height for an assembled wall of about 12 mm, with a service range of 4 to 100 °C and capacity set by module count.
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.5 m | 2 mm | Shallow or roof tank |
| 2.0 m | 3 mm | Standard sectional tank |
| 3.0 m | 4 mm | Deep tank, high static head |
| 4.0 m and above | 4.5 mm | Maximum height, braced |
Every enamel modular water tank is filled and held at full head before it leaves the factory, and no joint is allowed to weep. The plant is certified to ISO 9001 and the inspection certificate ships with the order; the full set is on our certifications page. The same specification is published on our Made-in-China storefront, where LVJIA is an audited supplier with a 5.0 store rating on Alibaba, 100% on-time dispatch and a response time under one hour.
Pricing for the enamel modular water tank starts at US$200 per m³, falling to US$180 from 10 and US$150 from 50, FOB Tianjin or Qingdao. The minimum order is one set and lead time is within 15 working days from Dezhou, Shandong. Give the batch size and cycle time along with the incoming supply flow, and the working volume is calculated from those.
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you commit to anything. Our engineers answer specification questions directly through technical help, and the rest of the range sits on the Enameled water tank page.
Same job, different material: the modular GRP water tank is the same tank in moulded GRP, for sites where no metal may touch the water, while the modular galvanized water tank builds it in hot-dip galvanized steel. Elsewhere in the enamelled range there is the enamel solar water tank for hot water storage and the insulated enamel water tank for insulated storage.
At a glance
Panels are 2 to 4.5 mm by height for an assembled wall of about 12 mm, with a service range of 4 to 100 °C and capacity set by module count. Standard panel dimensions: 3 × 1 m; 2 × 1 m; 1.5 × 1 m; 1 × 1 m; 1 × 0.5 m; 0.5 × 0.5 m. Tank dimensions are configured from standard panels. Non-standard panel dimensions are not offered as standard options.
Panel thickness by tank height — Enamel Modular Water Tank, Batching Plant
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.5 m | 2 mm | Shallow or roof tank |
| 2.0 m | 3 mm | Standard sectional tank |
| 3.0 m | 4 mm | Deep tank, high static head |
| 4.0 m and above | 4.5 mm | Maximum height, braced |
LVJIA has pressed water-tank panels in Dezhou since the plant opened, and holds ISO 9001 with import and export rights of its own.
Request a quoteThe panel is pressed from 2 to 4.5 mm steel depending on where it sits in the wall, then enamelled on both faces. Assembled, the wall section measures 12 mm.
Product dimensions
Tolerance requirements
Every tank is filled and held at full head before dispatch and no joint is allowed to weep. The glaze is spark-tested for holidays before the panel leaves the line.
Typical performance — Enamel Modular Water Tank, Batching Plant
| Test | Method | Result |
|---|---|---|
| Hydrostatic | 48 h at full head | No weep at any joint |
| Glaze integrity | Spark test for holidays | Pass |
| Certification | ISO 9001 quality system | Held |
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you order.
Talk to an engineerHow every tank is specified, built to your drawing, inspected and documented before it leaves the line.
We’ll help you meet your specification.
Send us a drawing or a capacity and we will come back with a specification, a price and a build slot.
Get in touchTanks our customers pair with this one. Hover or tap a card for its specification.
