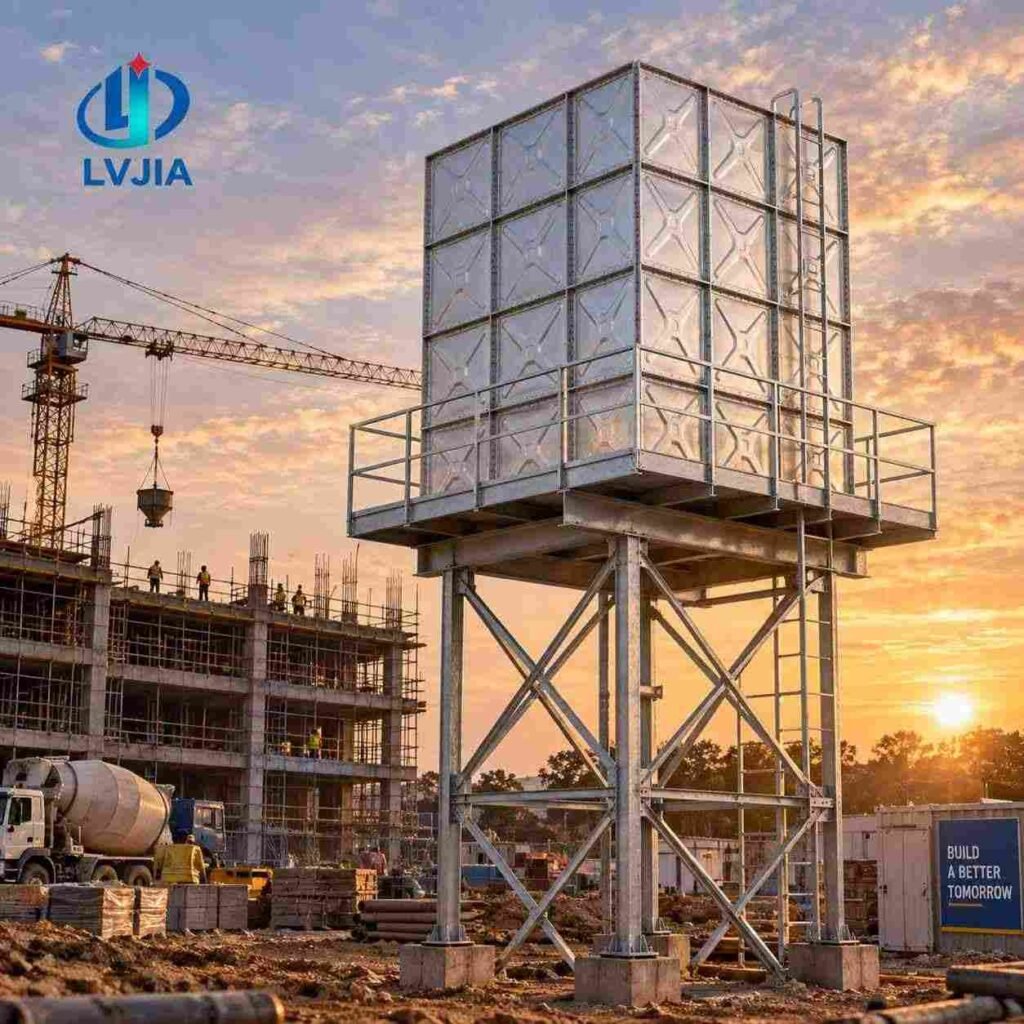

A galvanized water tower tank on a steel stand — gravity pressure to the network without a pump or a power supply.
Indicative — the quotation confirms the final figure US$3,600 Lead time within 15 working days · ex Dezhou, Shandong
SKU LVJ-HDG-TOWR
What buyers said once the tank was on site — every review left on our Alibaba store, in their own words.
The galvanized water tower tank from LVJIA is built on the Hot Dipped Galvanized panel system at our own plant in Dezhou, Shandong. Height is the cheapest pump there is: every ten metres of elevation is about one bar at the tap, and it never fails.
A galvanized water tower tank is a pressed steel sectional tank finished by hot-dip galvanising after the panels are formed. That order matters: because the zinc goes on last, it covers every edge, bolt hole and stiffener the press leaves behind, instead of cracking off a pre-galvanised sheet the moment it is stamped. LVJIA builds it from 1 to 3000 m³, or 125 litres to 500,000 litres, on a bolted panel system.

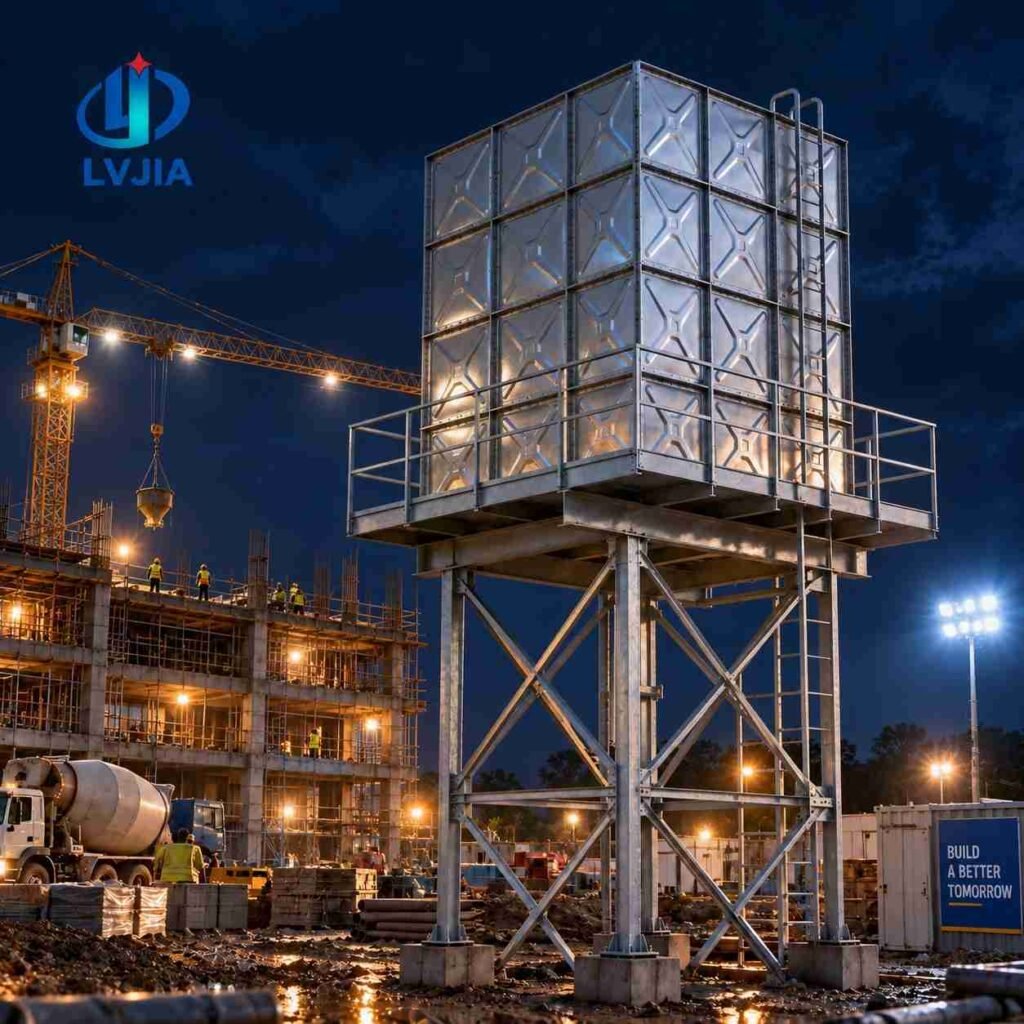

Lifting the tank on a stand converts stored volume into standing pressure, so the network is fed by gravity whether or not the power is on. That makes an elevated tank the standard answer for village supply, irrigation headers and any site with an unreliable grid: a pump fills the tower whenever electricity is available, and the tower supplies the network continuously. The galvanized panels matter here because a tower is the hardest thing on site to repaint later.
Panels are pressed from 2 to 5 mm steel plate, ribbed for stiffness, then dipped whole in molten zinc. The coating is metallurgically bonded rather than painted on, so it does not peel and it keeps protecting the steel at a scratch. Joints are bolted through an external flange onto a food-grade gasket, and the tank ships flat in a plywood box or on an iron bracket. The plant is certified to ISO 9001, ISO 14001 and ISO 50001, and the product carries CCC.
| Model number | Galvanized Water Tank |
|---|---|
| Material | Hot-dip galvanized steel plate |
| Type | Pressed sectional water tank |
| Installation | Bolted |
| Wall thickness | 2 – 5 mm |
| Operating temperature | 0 – 100 °C |
| Scope of application | Fire water, domestic water, drinking water |
| Water storage capacity | 1 – 3000 m³ |
| Specification | 125 L – 500,000 L |
| Transport package | Plywood box, iron bracket or nude |
| Certification | ISO 9001 · ISO 14001 · ISO 50001 · CCC |
| Origin | Dezhou City, Shandong Province, China |
Tower tanks are commonly 5 to 100 m³ on stands from 3 to 15 m. Stand height is set by the pressure needed at the furthest point of the network.
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.5 m | 2 mm | Shallow or roof tank |
| 2.0 m | 3 mm | Standard sectional tank |
| 3.0 m | 4 mm | Deep tank, high static head |
| 4.0 m and above | 5 mm | Maximum height, braced |
Every galvanized water tower tank is filled and held at full head before it leaves the factory, and no joint is allowed to weep. The plant is certified to ISO 9001 and the inspection certificate ships with the order; the full set is on our certifications page. The same specification is published on our Made-in-China storefront, where LVJIA is an audited supplier with a 5.0 store rating on Alibaba, 100% on-time dispatch and a response time under one hour.
Pricing for the galvanized water tower tank starts at US$200 per m³, falling to US$180 from 10 and US$150 from 50, FOB Tianjin or Qingdao. The minimum order is one set and lead time is within 15 working days from Dezhou, Shandong. Send the network layout and the furthest draw-off point, and the stand height is calculated from the pressure required there.
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you commit to anything. Our engineers answer specification questions directly through technical help, and the rest of the range sits on the Hot Dipped Galvanized water tank page.
Same job, different material: the stainless steel storage tank is the same tank in stainless steel, for sites where chlorides or a hygiene specification rule out coatings. Elsewhere in the hot dipped galvanized range there is the galvanized rainwater tank for harvested rainwater, the portable galvanized water tank for temporary and relocatable sites and the galvanized cooling water tank for cooling circuits.
At a glance
Tower tanks are commonly 5 to 100 m³ on stands from 3 to 15 m. Stand height is set by the pressure needed at the furthest point of the network.
Panel thickness by tank height — Galvanized Water Tower Tank, Elevated
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.5 m | 2 mm | Shallow or roof tank |
| 2.0 m | 3 mm | Standard sectional tank |
| 3.0 m | 4 mm | Deep tank, high static head |
| 4.0 m and above | 5 mm | Maximum height, braced |
LVJIA has pressed water-tank panels in Dezhou since the plant opened, and holds ISO 9001 with import and export rights of its own.
Request a quotePanels are pressed from 2 to 5 mm steel plate, ribbed for stiffness, then dipped whole in molten zinc. Because the dip comes after forming, the coating reaches the places a pre-galvanised sheet leaves exposed.
Product dimensions
Tolerance requirements
Every tank is filled and held at full head before dispatch and no joint is allowed to weep. Zinc coating weight is checked on each batch.
Typical performance — Galvanized Water Tower Tank, Elevated
| Test | Method | Result |
|---|---|---|
| Hydrostatic | 48 h at full head | No weep at any joint |
| Coating | Zinc weight check per batch | Pass |
| Certification | ISO 9001 · 14001 · 50001 · CCC | Held |
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you order.
