A portable galvanized water tank for construction sites — bolted up in a morning and moved to the next job when this one ends.
Indicative — the quotation confirms the final figure US$3,600 Lead time within 15 working days · ex Dezhou, Shandong
SKU LVJ-HDG-PORT
What buyers said once the tank was on site — every review left on our Alibaba store, in their own words.
The portable galvanized water tank from LVJIA is built on the Hot Dipped Galvanized panel system at our own plant in Dezhou, Shandong. A site tank is an asset, not a consumable, and the ones that last are the ones that come apart cleanly.
A portable galvanized water tank is a pressed steel sectional tank finished by hot-dip galvanising after the panels are formed. That order matters: because the zinc goes on last, it covers every edge, bolt hole and stiffener the press leaves behind, instead of cracking off a pre-galvanised sheet the moment it is stamped. LVJIA builds it from 1 to 3000 m³, or 125 litres to 500,000 litres, on a bolted panel system.
Every joint is a bolt through a gasket, so the tank is dismantled with the same spanners that built it and nothing is cut or ground. Because the zinc is applied at the works and never disturbed on site, panels survive repeated assembly without the touch-up painting that a coated tank needs each time. A contractor can move the same tank across five or six projects, which changes it from a per-job cost into a piece of plant.

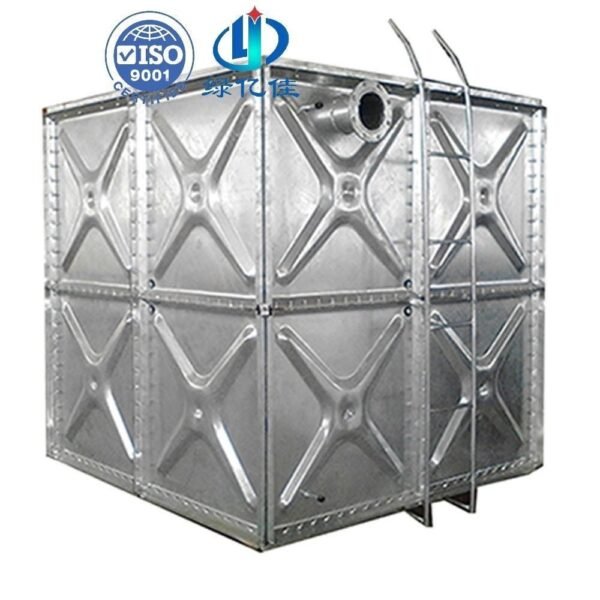

Panels are pressed from 2 to 5 mm steel plate, ribbed for stiffness, then dipped whole in molten zinc. The coating is metallurgically bonded rather than painted on, so it does not peel and it keeps protecting the steel at a scratch. Joints are bolted through an external flange onto a food-grade gasket, and the tank ships flat in a plywood box or on an iron bracket. The plant is certified to ISO 9001, ISO 14001 and ISO 50001, and the product carries CCC.
| Model number | Galvanized Water Tank |
|---|---|
| Material | Hot-dip galvanized steel plate |
| Type | Pressed sectional water tank |
| Installation | Bolted |
| Wall thickness | 2 – 5 mm |
| Operating temperature | 0 – 100 °C |
| Scope of application | Fire water, domestic water, drinking water |
| Water storage capacity | 1 – 3000 m³ |
| Specification | 125 L – 500,000 L |
| Transport package | Plywood box, iron bracket or nude |
| Certification | ISO 9001 · ISO 14001 · ISO 50001 · CCC |
| Origin | Dezhou City, Shandong Province, China |
Site tanks are commonly 10 to 200 m³. A crew of two assembles a mid-sized tank in a day on a prepared, level base.
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.5 m | 2 mm | Shallow or roof tank |
| 2.0 m | 3 mm | Standard sectional tank |
| 3.0 m | 4 mm | Deep tank, high static head |
| 4.0 m and above | 5 mm | Maximum height, braced |
Every portable galvanized water tank is filled and held at full head before it leaves the factory, and no joint is allowed to weep. The plant is certified to ISO 9001 and the inspection certificate ships with the order; the full set is on our certifications page. The same specification is published on our Made-in-China storefront, where LVJIA is an audited supplier with a 5.0 store rating on Alibaba, 100% on-time dispatch and a response time under one hour.
Pricing for the portable galvanized water tank starts at US$200 per m³, falling to US$180 from 10 and US$150 from 50, FOB Tianjin or Qingdao. The minimum order is one set and lead time is within 15 working days from Dezhou, Shandong. Ask for the reusable gasket set if the tank will be dismantled and rebuilt more than once or twice.
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you commit to anything. Our engineers answer specification questions directly through technical help, and the rest of the range sits on the Hot Dipped Galvanized water tank page.
Where another material suits the site better, the portable GRP water tank is the same tank in moulded GRP, for sites where no metal may touch the water. Elsewhere in the hot dipped galvanized range there is the galvanized bolted water tank for bolted assembly inside a finished building, the galvanized fire water tank for fire reserves and the galvanized water storage tank for bulk storage.
At a glance
Site tanks are commonly 10 to 200 m³. A crew of two assembles a mid-sized tank in a day on a prepared, level base.
Panel thickness by tank height — Portable Galvanized Water Tank, Site Use
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.5 m | 2 mm | Shallow or roof tank |
| 2.0 m | 3 mm | Standard sectional tank |
| 3.0 m | 4 mm | Deep tank, high static head |
| 4.0 m and above | 5 mm | Maximum height, braced |
LVJIA has pressed water-tank panels in Dezhou since the plant opened, and holds ISO 9001 with import and export rights of its own.
Request a quotePanels are pressed from 2 to 5 mm steel plate, ribbed for stiffness, then dipped whole in molten zinc. Because the dip comes after forming, the coating reaches the places a pre-galvanised sheet leaves exposed.
Product dimensions
Tolerance requirements
Every tank is filled and held at full head before dispatch and no joint is allowed to weep. Zinc coating weight is checked on each batch.
Typical performance — Portable Galvanized Water Tank, Site Use
| Test | Method | Result |
|---|---|---|
| Hydrostatic | 48 h at full head | No weep at any joint |
| Coating | Zinc weight check per batch | Pass |
| Certification | ISO 9001 · 14001 · 50001 · CCC | Held |
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you order.
Talk to an engineerHow every tank is specified, built to your drawing, inspected and documented before it leaves the line.
