A GRP anti corrosion water tank with no metal in contact with the water — nothing to rust, nothing to coat, nothing to repaint.
Indicative — the quotation confirms the final figure US$380 Lead time within 15 working days · ex Dezhou, Shandong
SKU LVJ-GRP-AC
What buyers said once the tank was on site — every review left on our Alibaba store, in their own words.
The GRP anti corrosion water tank from LVJIA is built on the GRP/FRP/SMC panel system at our own plant in Dezhou, Shandong. It is specified where water chemistry, humidity or coastal air would eat a steel tank from the inside out.

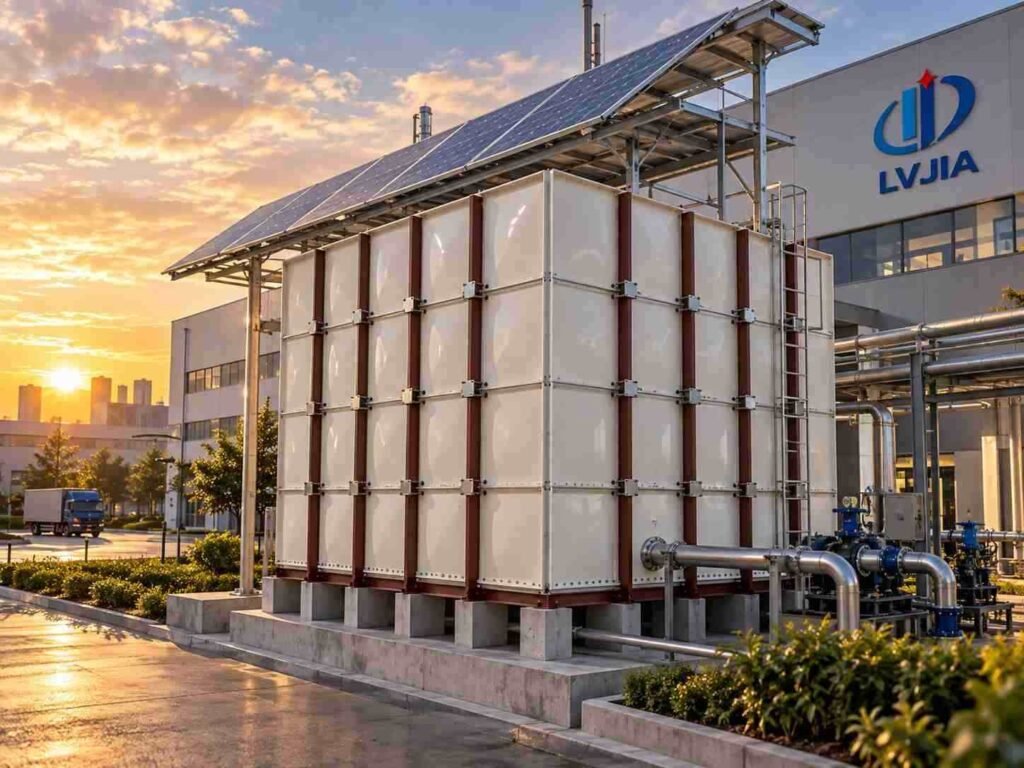

A GRP anti corrosion water tank is a bolted sectional tank built from hot-press moulded SMC panels. Sheet moulding compound is a glass-reinforced polyester pressed at heat and pressure into a single stiff panel, so the finished wall is inert, light and dimensionally exact. Panels come in 3 × 1 m; 2 × 1 m; 1.5 × 1 m; 1 × 1 m; 1 × 0.5 m; 0.5 × 0.5 m, which is how the tank is fitted to an awkward plant room rather than the plant room to the tank. LVJIA builds it from 1 to 5000 m³.
A coated steel tank is only as good as its coating, and the coating always fails first — at the waterline, at a bolt hole, at a scratch from installation. An SMC panel has no coating because it has no steel in contact with the water: the corrosion-resistant material is the structure. That is why these tanks are chosen for treated water, mildly aggressive process water, and any site where salt-laden air gets at the outside of the tank as well as the inside.

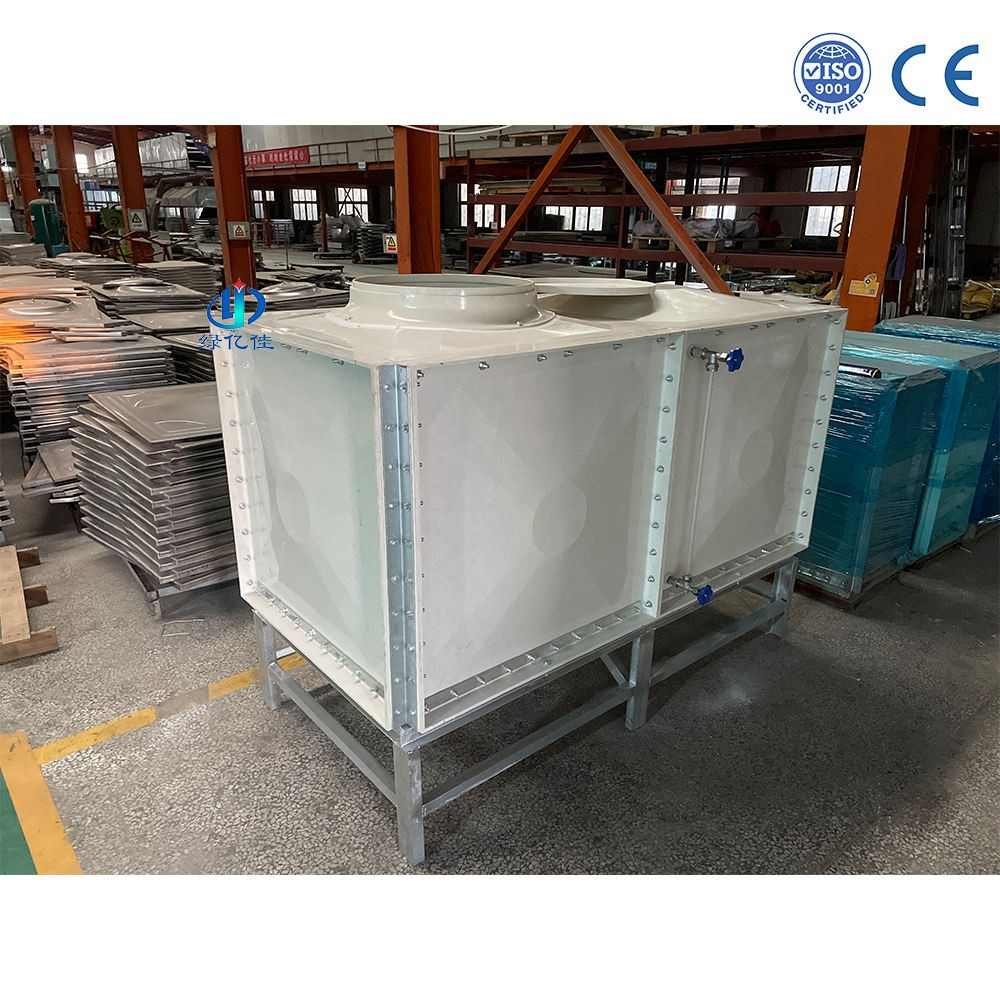

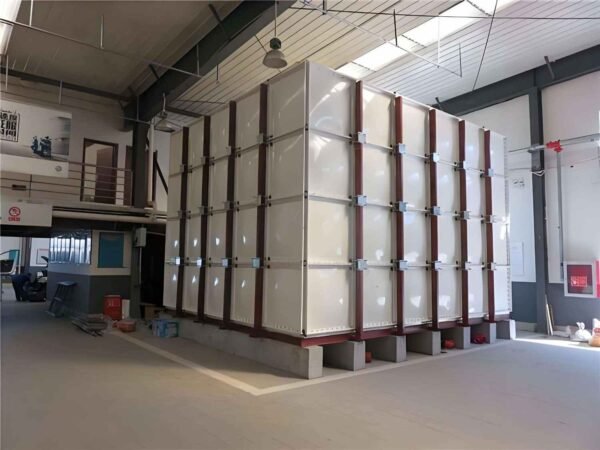

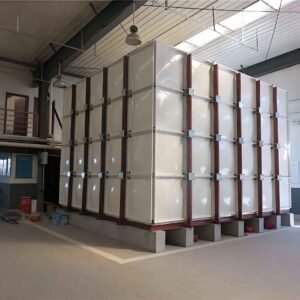

The wall is a moulded SMC panel — 8 mm on a shallow tank, thickening to 16 mm at full height, with no metal in contact with the water at all, so there is nothing to corrode, nothing to coat and nothing to earth. Panels are drawn together on an external flange with stainless bolts and a food-grade gasket, and internal tie rods brace the larger shells. Because a single panel weighs what one person can carry, the whole tank goes up a stairwell and through a standard doorway, which is why so many of these are retrofits into buildings that were never designed to hold a tank.
| Model number | Customized size |
|---|---|
| Material | FRP / SMC moulded composite panel |
| Type | SMC sectional water tank |
| Installation | Bolt connection |
| Panel sizes | 3 × 1 m 3 × 1 m 1.5 × 1 m 1 × 1 m 1 × 0.5 m 0.5 × 0.5 m |
| Wall thickness | 8 mm |
| Colour | White, blue or black |
| Capacity range | 1 – 5000 m³ |
| Transport package | Wooden crate |
| HS code | 7310100090 |
| Certification | ISO 9001 |
| Origin | Dezhou City, Shandong Province, China |
Panels come as 1 × 1 m with 1.5 × 1 m, 2 × 1 m and half-size modules, so capacity steps finely and the tank fits the room rather than the room being built around the tank. Capacity runs from 1 to 5000 m³.
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.0 m | 8 mm | Shallow or roof-mounted tank |
| 1.5 – 2.0 m | 8 – 10 mm | Standard sectional tank |
| 2.5 – 3.0 m | 10 – 13 mm | Deep tank, internal tie rods |
| 3.5 – 4.0 m | 13 – 16 mm | Maximum height, reinforced base |
Every GRP anti corrosion water tank is filled and held at full head before it leaves the factory, and no joint is allowed to weep. The plant is certified to ISO 9001 and the inspection certificate ships with the order; the full set is on our certifications page. The same specification is published on our Made-in-China storefront, where LVJIA is an audited supplier with a 5.0 store rating on Alibaba, 100% on-time dispatch and a response time under one hour.
Pricing for the GRP anti corrosion water tank starts at US$20 per panel, falling to US$19 from 10 and US$18 from 50, FOB Tianjin or Qingdao. The minimum order is one set and lead time is within 15 working days from Dezhou, Shandong. Send the water analysis with the enquiry so the resin and gasket specification can be confirmed.
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you commit to anything. Our engineers answer specification questions directly through technical help, and the rest of the range sits on the GRP/FRP/SMC water tank page.
Same job, different material: the stainless steel industrial water tank is the same tank in stainless steel, for sites where chlorides or a hygiene specification rule out coatings, while the stainless steel process water tank builds it in stainless steel. Elsewhere in the GRP/FRP/SMC range there is the portable GRP water tank for temporary and relocatable sites and the modular GRP water tank for built-to-size layouts.
At a glance
Panels come as 1 × 1 m with 1.5 × 1 m, 2 × 1 m and half-size modules, so capacity steps finely and the tank fits the room rather than the room being built around the tank. Capacity runs from 1 to 5000 m³. Standard panel dimensions: 3 × 1 m; 2 × 1 m; 1.5 × 1 m; 1 × 1 m; 1 × 0.5 m; 0.5 × 0.5 m. Tank dimensions are configured from standard panels. Non-standard panel dimensions are not offered as standard options.
Panel thickness by tank height — GRP Anti-Corrosion Water Tank
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.0 m | 8 mm | Shallow or roof-mounted tank |
| 1.5 – 2.0 m | 8 – 10 mm | Standard sectional tank |
| 2.5 – 3.0 m | 10 – 13 mm | Deep tank, internal tie rods |
| 3.5 – 4.0 m | 13 – 16 mm | Maximum height, reinforced base |
LVJIA has pressed water-tank panels in Dezhou since the plant opened, and holds ISO 9001 with import and export rights of its own.
Request a quoteThe panel is sheet moulding compound — glass fibre in a polyester matrix, pressed under heat into a single stiff piece. It is inert, it does not conduct, and it weighs a fraction of the equivalent steel panel.
Product dimensions
Tolerance requirements
Every tank is filled and held at full head before dispatch and no joint is allowed to weep. Panels are checked for flatness and bolt-hole pitch as they come off the press.
Typical performance — GRP Anti-Corrosion Water Tank
| Test | Method | Result |
|---|---|---|
| Hydrostatic | 48 h at full head | No weep at any joint |
| Panel flatness | Gauge check off the press | ± 1.0 mm |
| Potable contact | Food-grade resin and gasket | Pass |
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you order.
Talk to an engineerHow every tank is specified, built to your drawing, inspected and documented before it leaves the line.
We’ll help you meet your specification.
Send us a drawing or a capacity and we will come back with a specification, a price and a build slot.
Get in touchTanks our customers pair with this one. Hover or tap a card for its specification.
