A portable GRP water tank that bolts up on site and comes apart again — panels carry by hand, so it moves with the job.
Indicative — the quotation confirms the final figure US$380 Lead time within 15 working days · ex Dezhou, Shandong
SKU LVJ-GRP-PORT
What buyers said once the tank was on site — every review left on our Alibaba store, in their own words.
The portable GRP water tank from LVJIA is built on the GRP/FRP/SMC panel system at our own plant in Dezhou, Shandong. It is built for sites that need water now and will need it somewhere else in six months.
A portable GRP water tank is a bolted sectional tank built from hot-press moulded SMC panels. Sheet moulding compound is a glass-reinforced polyester pressed at heat and pressure into a single stiff panel, so the finished wall is inert, light and dimensionally exact. Panels come in 3 × 1 m; 2 × 1 m; 1.5 × 1 m; 1 × 1 m; 1 × 0.5 m; 0.5 × 0.5 m, which is how the tank is fitted to an awkward plant room rather than the plant room to the tank. LVJIA builds it from 1 to 5000 m³.

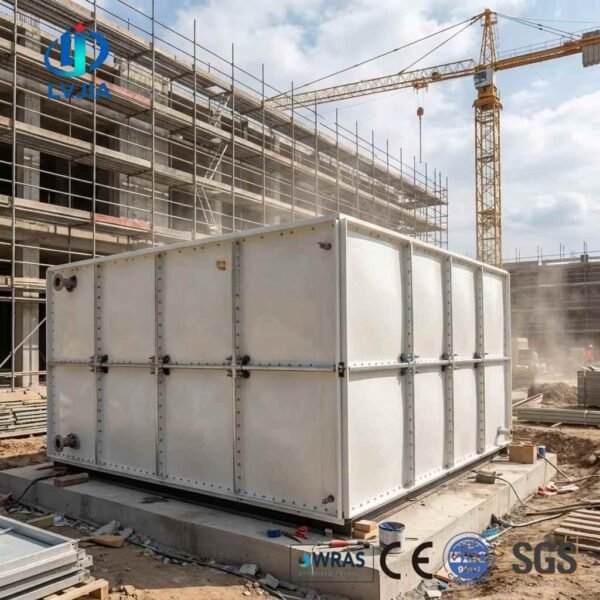

A welded steel tank is a one-way trip: once it is craned in, it stays. This one arrives as a stack of moulded panels on a pallet, bolts together in a few hours with hand tools, and comes apart the same way when the contract ends. Each panel is light enough for one person to carry, so there is no lifting plant, no hot work permit and no welder on site. That is also why it reaches basements and courtyards that a prefabricated tank never could.

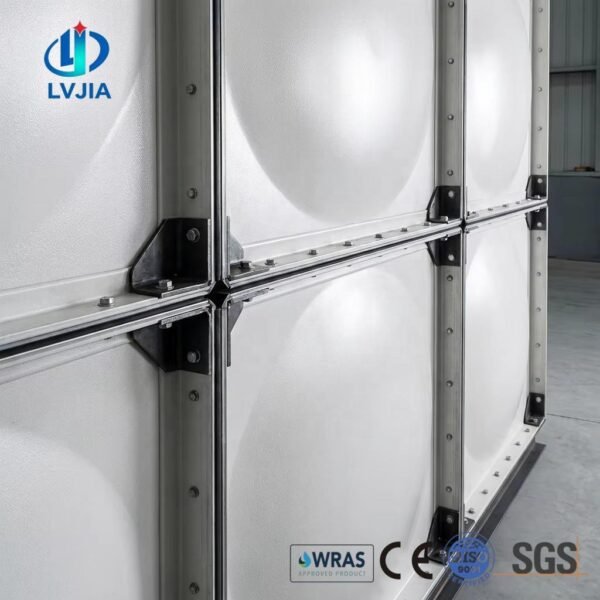

The wall is a moulded SMC panel — 8 mm on a shallow tank, thickening to 16 mm at full height, with no metal in contact with the water at all, so there is nothing to corrode, nothing to coat and nothing to earth. Panels are drawn together on an external flange with stainless bolts and a food-grade gasket, and internal tie rods brace the larger shells. Because a single panel weighs what one person can carry, the whole tank goes up a stairwell and through a standard doorway, which is why so many of these are retrofits into buildings that were never designed to hold a tank.
| Model number | Customized size |
|---|---|
| Material | FRP / SMC moulded composite panel |
| Type | SMC sectional water tank |
| Installation | Bolt connection |
| Panel sizes | 3 × 1 m 3 × 1 m 1.5 × 1 m 1 × 1 m 1 × 0.5 m 0.5 × 0.5 m |
| Wall thickness | 8 mm |
| Colour | White, blue or black |
| Capacity range | 1 – 5000 m³ |
| Transport package | Wooden crate |
| HS code | 7310100090 |
| Certification | ISO 9001 |
| Origin | Dezhou City, Shandong Province, China |
Site tanks are usually wide and shallow so they can be filled by tanker and drawn down by pump: 3 × 2 × 1 m, 4 × 3 × 1.5 m, 6 × 4 × 2 m and 8 × 4 × 2 m are common. The same panel system scales to 5000 m³ if the job grows.
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.0 m | 8 mm | Shallow or roof-mounted tank |
| 1.5 – 2.0 m | 8 – 10 mm | Standard sectional tank |
| 2.5 – 3.0 m | 10 – 13 mm | Deep tank, internal tie rods |
| 3.5 – 4.0 m | 13 – 16 mm | Maximum height, reinforced base |
Every portable GRP water tank is filled and held at full head before it leaves the factory, and no joint is allowed to weep. The plant is certified to ISO 9001 and the inspection certificate ships with the order; the full set is on our certifications page. The same specification is published on our Made-in-China storefront, where LVJIA is an audited supplier with a 5.0 store rating on Alibaba, 100% on-time dispatch and a response time under one hour.
Pricing for the portable GRP water tank starts at US$20 per panel, falling to US$19 from 10 and US$18 from 50, FOB Tianjin or Qingdao. The minimum order is one set and lead time is within 15 working days from Dezhou, Shandong. Panels ship flat in a wooden crate, so a complete tank travels as ordinary palletised freight.
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you commit to anything. Our engineers answer specification questions directly through technical help, and the rest of the range sits on the GRP/FRP/SMC water tank page.
If the material has to change, the galvanized mining water tank is the same tank in hot-dip galvanized steel, for sites where a heavier steel wall suits the head, while the portable galvanized water tank builds it in hot-dip galvanized steel. Elsewhere in the GRP/FRP/SMC range there is the horizontal GRP water tank for roof and low-headroom installations and the GRP sectional water tank for bolted assembly inside a finished building.
At a glance
Site tanks are usually wide and shallow so they can be filled by tanker and drawn down by pump: 3 × 2 × 1 m, 4 × 3 × 1.5 m, 6 × 4 × 2 m and 8 × 4 × 2 m are common. The same panel system scales to 5000 m³ if the job grows. Standard panel dimensions: 3 × 1 m; 2 × 1 m; 1.5 × 1 m; 1 × 1 m; 1 × 0.5 m; 0.5 × 0.5 m. Tank dimensions are configured from standard panels. Non-standard panel dimensions are not offered as standard options.
Panel thickness by tank height — Portable GRP Water Tank for Construction
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.0 m | 8 mm | Shallow or roof-mounted tank |
| 1.5 – 2.0 m | 8 – 10 mm | Standard sectional tank |
| 2.5 – 3.0 m | 10 – 13 mm | Deep tank, internal tie rods |
| 3.5 – 4.0 m | 13 – 16 mm | Maximum height, reinforced base |
LVJIA has pressed water-tank panels in Dezhou since the plant opened, and holds ISO 9001 with import and export rights of its own.
Request a quoteThe panel is sheet moulding compound — glass fibre in a polyester matrix, pressed under heat into a single stiff piece. It is inert, it does not conduct, and it weighs a fraction of the equivalent steel panel.
Product dimensions
Tolerance requirements
Every tank is filled and held at full head before dispatch and no joint is allowed to weep. Panels are checked for flatness and bolt-hole pitch as they come off the press.
Typical performance — Portable GRP Water Tank for Construction
| Test | Method | Result |
|---|---|---|
| Hydrostatic | 48 h at full head | No weep at any joint |
| Panel flatness | Gauge check off the press | ± 1.0 mm |
| Potable contact | Food-grade resin and gasket | Pass |
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you order.
Talk to an engineerHow every tank is specified, built to your drawing, inspected and documented before it leaves the line.
We’ll help you meet your specification.
Send us a drawing or a capacity and we will come back with a specification, a price and a build slot.
Get in touchTanks our customers pair with this one. Hover or tap a card for its specification.
