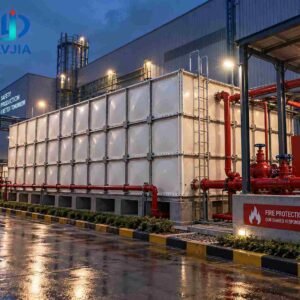

A GRP fire water tank holding a 40,000 gallon reserve — water that sits untouched for years and is still clean when the pump starts.
Indicative — the quotation confirms the final figure US$380 Lead time within 15 working days · ex Dezhou, Shandong
SKU LVJ-GRP-FIRE
What buyers said once the tank was on site — every review left on our Alibaba store, in their own words.
The GRP fire water tank from LVJIA is built on the GRP/FRP/SMC panel system at our own plant in Dezhou, Shandong. Fire water is the hardest duty a tank has: it sits still for years, then has to deliver everything at once.

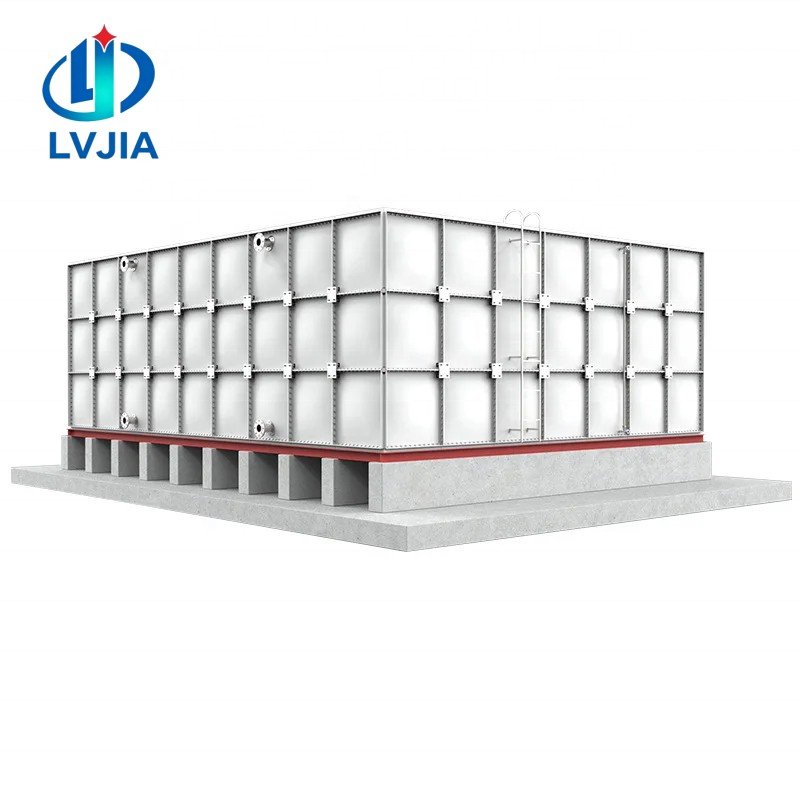

A GRP fire water tank is a bolted sectional tank built from hot-press moulded SMC panels. Sheet moulding compound is a glass-reinforced polyester pressed at heat and pressure into a single stiff panel, so the finished wall is inert, light and dimensionally exact. Panels come in 3 × 1 m; 2 × 1 m; 1.5 × 1 m; 1 × 1 m; 1 × 0.5 m; 0.5 × 0.5 m, which is how the tank is fitted to an awkward plant room rather than the plant room to the tank. LVJIA builds it from 1 to 5000 m³.
Standing water is what destroys fire tanks. A steel tank corrodes quietly at the waterline and drops scale into the suction, and the failure is only discovered during a test or an incident. An SMC panel has no metal in contact with the water at all, so there is nothing to rust, nothing to flake into the pump and no internal lining to inspect or renew. The reserve you commissioned is the reserve you still have ten years later, which is the whole point of the asset.
The wall is a moulded SMC panel — 8 mm on a shallow tank, thickening to 16 mm at full height, with no metal in contact with the water at all, so there is nothing to corrode, nothing to coat and nothing to earth. Panels are drawn together on an external flange with stainless bolts and a food-grade gasket, and internal tie rods brace the larger shells. Because a single panel weighs what one person can carry, the whole tank goes up a stairwell and through a standard doorway, which is why so many of these are retrofits into buildings that were never designed to hold a tank.
| Model number | Customized size |
|---|---|
| Material | FRP / SMC moulded composite panel |
| Type | SMC sectional water tank |
| Installation | Bolt connection |
| Panel sizes | 3 × 1 m 3 × 1 m 1.5 × 1 m 1 × 1 m 1 × 0.5 m 0.5 × 0.5 m |
| Wall thickness | 8 mm |
| Colour | White, blue or black |
| Capacity range | 1 – 5000 m³ |
| Transport package | Wooden crate |
| HS code | 7310100090 |
| Certification | ISO 9001 |
| Origin | Dezhou City, Shandong Province, China |
Forty thousand US gallons is about 151 m³, usually built as 9 × 7 × 2.5 m. The panel system covers 1 to 5000 m³, so the tank is sized to the hazard calculation rather than the other way round.
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.0 m | 8 mm | Shallow or roof-mounted tank |
| 1.5 – 2.0 m | 8 – 10 mm | Standard sectional tank |
| 2.5 – 3.0 m | 10 – 13 mm | Deep tank, internal tie rods |
| 3.5 – 4.0 m | 13 – 16 mm | Maximum height, reinforced base |
Every GRP fire water tank is filled and held at full head before it leaves the factory, and no joint is allowed to weep. The plant is certified to ISO 9001 and the inspection certificate ships with the order; the full set is on our certifications page. The same specification is published on our Made-in-China storefront, where LVJIA is an audited supplier with a 5.0 store rating on Alibaba, 100% on-time dispatch and a response time under one hour.
Pricing for the GRP fire water tank starts at US$20 per panel, falling to US$19 from 10 and US$18 from 50, FOB Tianjin or Qingdao. The minimum order is one set and lead time is within 15 working days from Dezhou, Shandong. Suction connections, anti-vortex plates, level switches and low-level alarm points are set out on the drawing before manufacture.
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you commit to anything. Our engineers answer specification questions directly through technical help, and the rest of the range sits on the GRP/FRP/SMC water tank page.
If the material has to change, the enamel fire water tank is the same tank in glass-fused-to-steel, for sites where the surface must never be relined, while the galvanized fire water tank builds it in hot-dip galvanized steel. Elsewhere in the GRP/FRP/SMC range there is the portable GRP water tank for temporary and relocatable sites and the modular GRP water tank for built-to-size layouts.
At a glance
Forty thousand US gallons is about 151 m³, usually built as 9 × 7 × 2.5 m. The panel system covers 1 to 5000 m³, so the tank is sized to the hazard calculation rather than the other way round. Standard panel dimensions: 3 × 1 m; 2 × 1 m; 1.5 × 1 m; 1 × 1 m; 1 × 0.5 m; 0.5 × 0.5 m. Tank dimensions are configured from standard panels. Non-standard panel dimensions are not offered as standard options.
Panel thickness by tank height — GRP Fire Water Tank, 40,000 Gallon
| Tank height | Panel thickness | Typical use |
|---|---|---|
| Up to 1.0 m | 8 mm | Shallow or roof-mounted tank |
| 1.5 – 2.0 m | 8 – 10 mm | Standard sectional tank |
| 2.5 – 3.0 m | 10 – 13 mm | Deep tank, internal tie rods |
| 3.5 – 4.0 m | 13 – 16 mm | Maximum height, reinforced base |
LVJIA has pressed water-tank panels in Dezhou since the plant opened, and holds ISO 9001 with import and export rights of its own.
Request a quoteThe panel is sheet moulding compound — glass fibre in a polyester matrix, pressed under heat into a single stiff piece. It is inert, it does not conduct, and it weighs a fraction of the equivalent steel panel.
Product dimensions
Tolerance requirements
Every tank is filled and held at full head before dispatch and no joint is allowed to weep. Panels are checked for flatness and bolt-hole pitch as they come off the press.
Typical performance — GRP Fire Water Tank, 40,000 Gallon
| Test | Method | Result |
|---|---|---|
| Hydrostatic | 48 h at full head | No weep at any joint |
| Panel flatness | Gauge check off the press | ± 1.0 mm |
| Potable contact | Food-grade resin and gasket | Pass |
Send the capacity you need and the space you have, and LVJIA returns an arrangement drawing with the panel schedule before you order.
Talk to an engineerHow every tank is specified, built to your drawing, inspected and documented before it leaves the line.
We’ll help you meet your specification.
Send us a drawing or a capacity and we will come back with a specification, a price and a build slot.
Get in touchTanks our customers pair with this one. Hover or tap a card for its specification.
